The Conversion System for Shorter Fences will allow you to add up to 3' overall to the height of your existing fence... Now you can use Purrfect Fence to Cat-Proof your fence or wall even if it is only 3' high!
❗ Have a fence or wall over 5 feet in height? Use the Standard Existing Fence Conversion System to cat-proof fences and walls 5' or higher!The Conversion System for Shorter Fences will convert your shorter fence into a escape-proof fence for cats. The kits includes Cat-Proofer spring-loaded arms, extender for each arm, the associated mounting brackets and a 6' tall roll of fence based on the size of kit you choose.
Keep in mind that every fence is different and there are no universally followed guidelines for post spacing, height, materials used,etc. A 50ft kit is designed for the average 50 linear feet of fence. 100 ft kit is designed for an average 100 linear feet of fence. A 200 ft kit is designed for the average 200 linear feet of fence. If you have gates, turns, short or long spans between posts then you may find that you need more or less components than comes with the kit. If in doubt, contact us first!

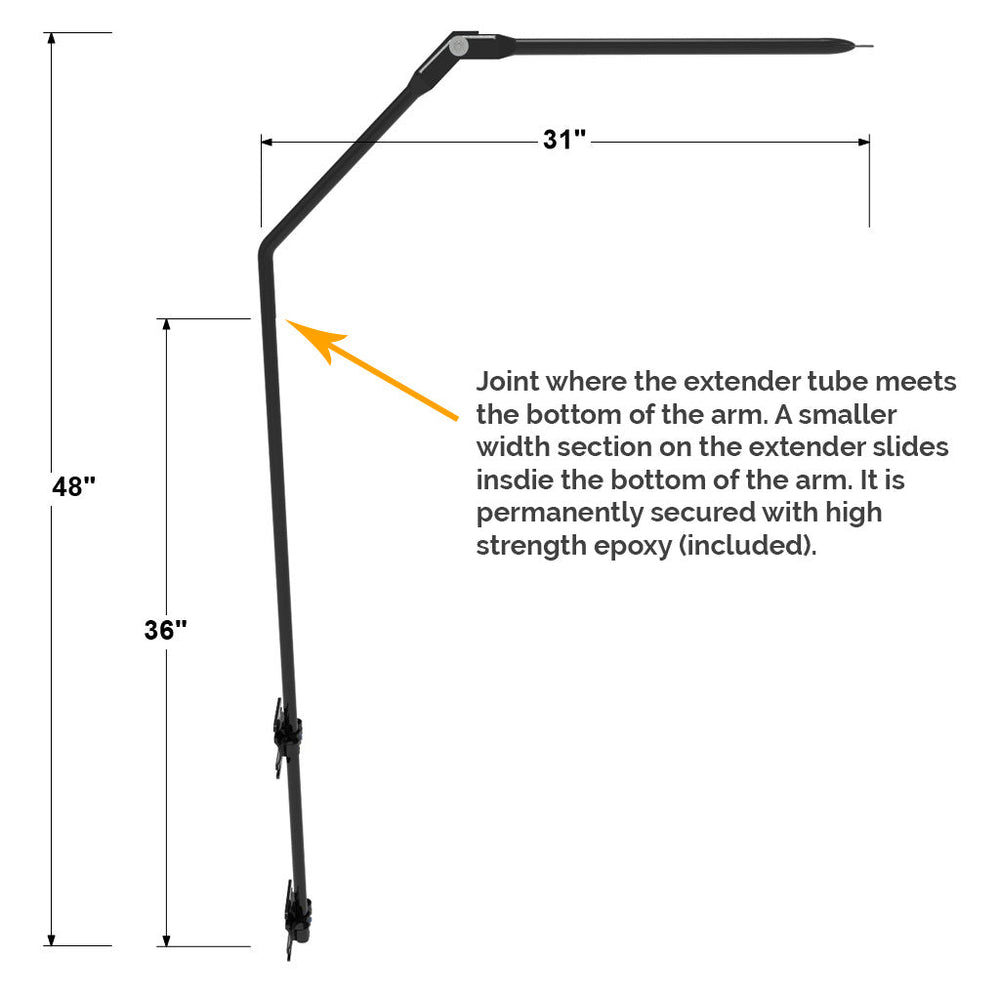

The extension tubes are made of thick 14 gauge steel (an arm set as high as possible on an extension tube can hold well over 50lbs). The scrunched end of the extension tube slides inside of the leg of the Conversion System Arms. The included high-strength epoxy bonds the pieces together. Once glued up, the extended arms slide into two mounting plates spaced a minimum of 4" apart secured to your fence posts with the top mounting plate set as high as possible on your post. Slide the arm to be at the desired height, tighten a set screw on each plate and your arm is secured to your post. Repeat this for all your posts and the fence material is ready to install.

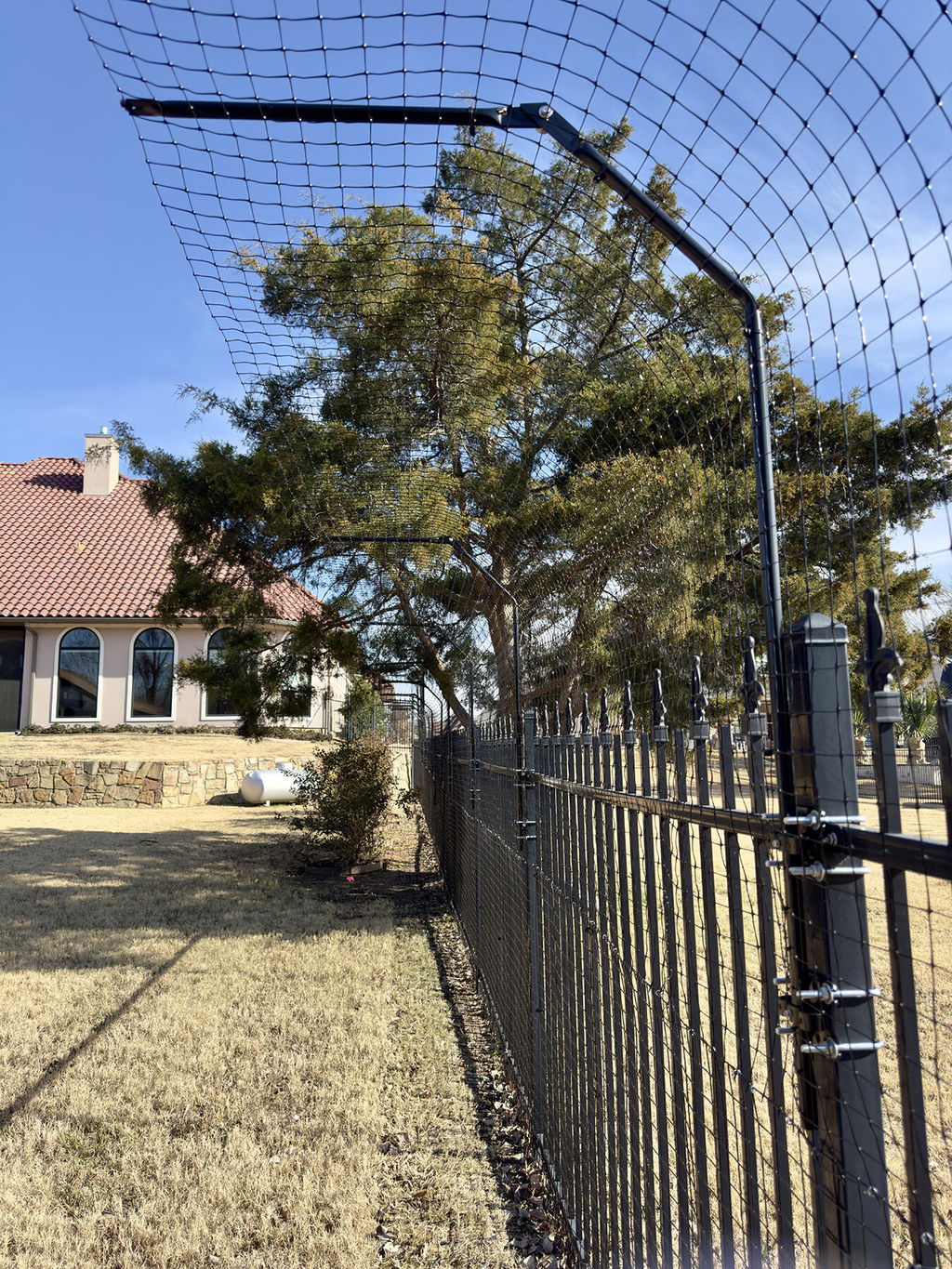

Please note: If the fence is chain link, decorative aluminum or other metal picket fence you will need U-Bolts to secure the mounting bracket to the posts. You can use only one U-Bolt per bracket with this system so purchase one set of U-Bolts per post.
Download a printable version of this table.
| Existing Shorter Fence Conversion System | 50 Foot Kit | 100 Foot Kit | 150 Foot Kit | 200 Foot Kit | 250 Foot Kit | 300 Foot Kit | 350 Foot Kit | 400 Foot Kit | 450 Foot Kit | 500 Foot Kit | 550 Foot Kit | 600 Foot Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Spring Loaded Arms | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
| 3 Ring Universal Mounting Brackets | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 |
| Set Screws | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 |
| Extension Tubes | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
| 6' 600lbs Break Strength Mesh | 50 Feet | 100 Feet | 150 Feet | 200 Feet | 250 Feet | 300 Feet | 350 Feet | 400 Feet | 450 Feet | 500 Feet | 550 Feet | 600 Feet |
| UV Rated Ties (bags) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Arm to Wall/Structure Hardware | 2 Sets | 2 Sets | 2 Sets | 2 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets |
| Written Installation Instructions | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Download a printable version of this table.
- Fasteners for holding hardware to building/home are not included. Fasteners should be chosen based on the type of material covering the building/wall/fence (wood screw, masonry screw, etc.)
-As the table above shows, a 50-foot kit comes with 50 feet of fencing material, not 60 feet. A 150-foot kit comes with 150 feet of fencing material. It is advised that you consider ordering approximately 10% or more than you need to allow for cut pieces and minor errors in installation.
-The above table applies to orders placed after 12/26/19.
Items of note when planning your order/layout:
-Each existing fence is unique! The maximum span between arms is 12-14 feet. 8-10 Feet is preferred. Count and measure the distance between your posts to ensure that your chosen kit will cover your fence layout.
- Keep in mind that our Existing Fence Conversion System for Shorter Fences will provide up to 36" inches of additional height from wherever the upper mounting bracket is secured. So, if the bracket is mounted at the top of a 4FT fence, then the finished Purrfect Fence height can be as tall as 7FT. This is adjustable and can be set at any height you prefer between 12" and 36" above where the uppermost mounting bracket is secured.
- Our patented system works by forcing your cat(s) to climb up the fence which activates the spring-loaded arm from the bottom if they are able to reach the top (most are not.) So, for maximum effectiveness, it is important that the finished height of your Purrfect Fence be tall enough so your cat cannot simply leap over it. For most domestic cats the minimum finished height (measured from the ground to the tip of the Purrfect Fence extension) we recommend is 6FT, though we prefer it to be taller when possible. Even so, we have had customers tell us it was effective for their cat(s) at shorter heights. However, higher is always better and may be necessary if your particular cat or cat breed is capable of leaping higher than the average healthy and athletic (domestic shorthair) cat.
- Fasteners for holding hardware to building/home are not included. Fasteners should be chosen based on the type of material covering the building/wall/fence (wood screw, masonry screw, etc.)
-Gates in your fence line require special consideration. Read below for more information on gate planning and installation.
Installation Instructions
Chain Link Fence Install Hardware
PVC Fence & Walls Install Kit
FAQ
Gates need to be considered separately for your layout plan. Each gate in your existing fence is likely to need additional components depending on the location and operation.
Inward Swinging GateMany inward swinging gates require 1-2 extra arm/bracket(s) per gate. Your situation may vary. If you have any questions please contact us.
Many outward swinging gates require 2-3 extra arm/bracket(s) per gate. Your situation may vary. If you have any questions please contact us.
Tool Kit for installing our conversion fence system - includes Tie Tool, Contractors String, Multi-Snips. Great for all of the different fencing systems we offer. These tools will save you time, limit...
The Zip Tie Tool is a great idea for Purrfect Fence installation because: It will securely tighten a zip tie more than most people are able to with their bare hands. It will trim excess cleanly witho...
This kit enables you to secure the bottom edge of our fencing material to your PVC fence, masonry based fence or wall. The thick band of nylon is woven through the bottom edge of fence. For a PVC fenc...
U-Bolts for 2" Square Metal Posts are most typically used to attach the Existing Fence Conversion System arms and Dog Proofer Arms to decorative aluminum / wrought iron fences. Although some decorativ...
U-Bolts for Round Posts are used to secure the arms of the Existing Fence Conversion System and the Dog-Proofer Arms to round fence posts which are most commonly found on chain link fencing. The U-Bol...
One of my cats tried to get out and it worked perfectly. I love it.
One of our male cats was introduced to the outdoors on a leash for several months before we installed the Purrfect fence so we knew he liked being outside. We didn't really know the interest level of the other 3 cats. Since opening the Purrfect fence space in our backyard a few months ago, all 4 cats spend time out there each day. The 2 male cats will spend all day out there if allowed, and the 2 females especially like to enjoy the evening hours out there.
My experience on the human side of the Purffect Fence is that the product is high quality and the customer service was excellent. I shopped other systems that were less expensive, but I doubt I would have gotten the personal support during the purchase and install process that I got from Matt at Purffect Fence.
For those of you who want to enhance your pets' lives and enjoy an excellent customer experience, I recommend that you seriously consider (and ultimately buy!) the Purrfect Fence.

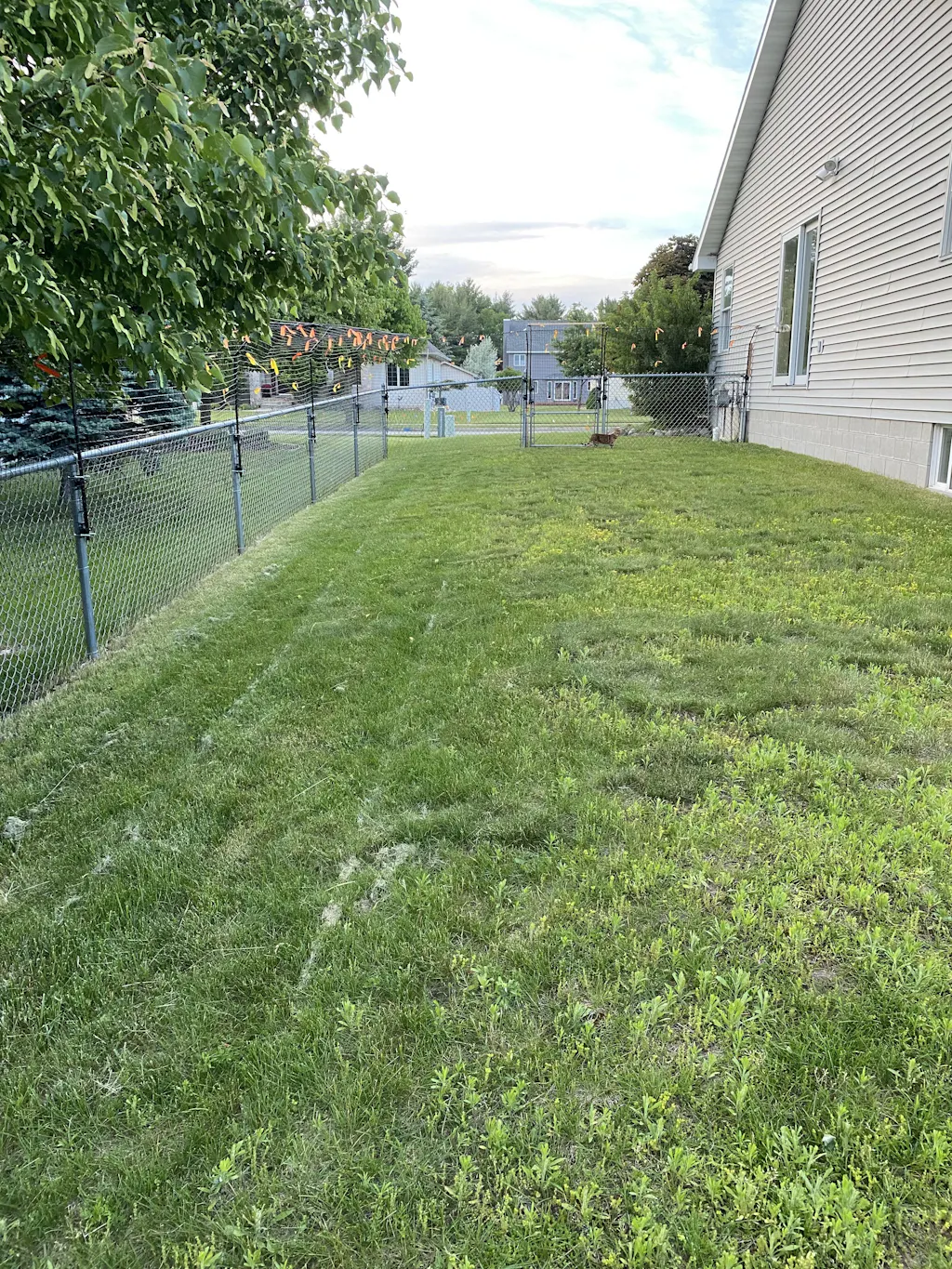

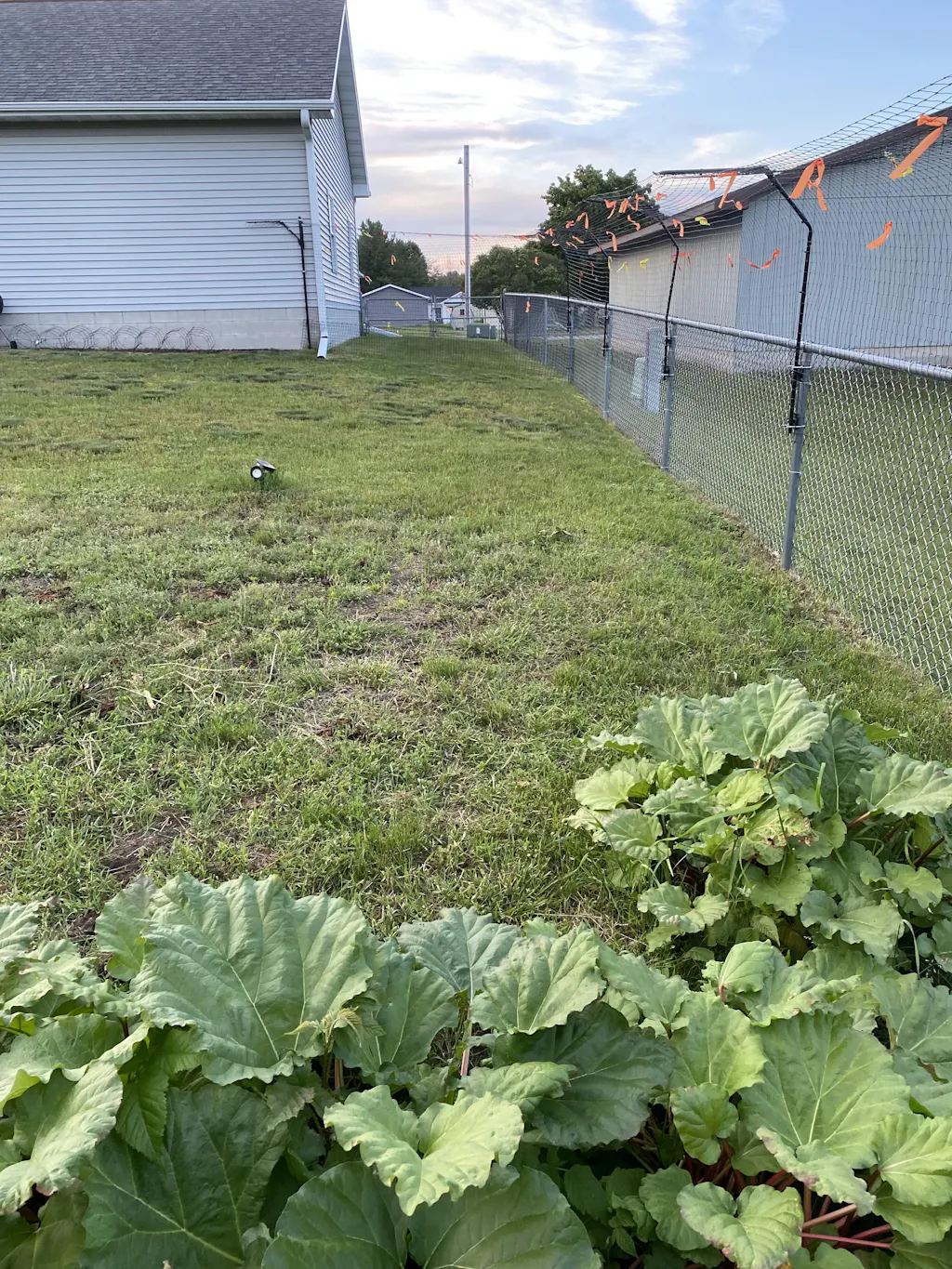

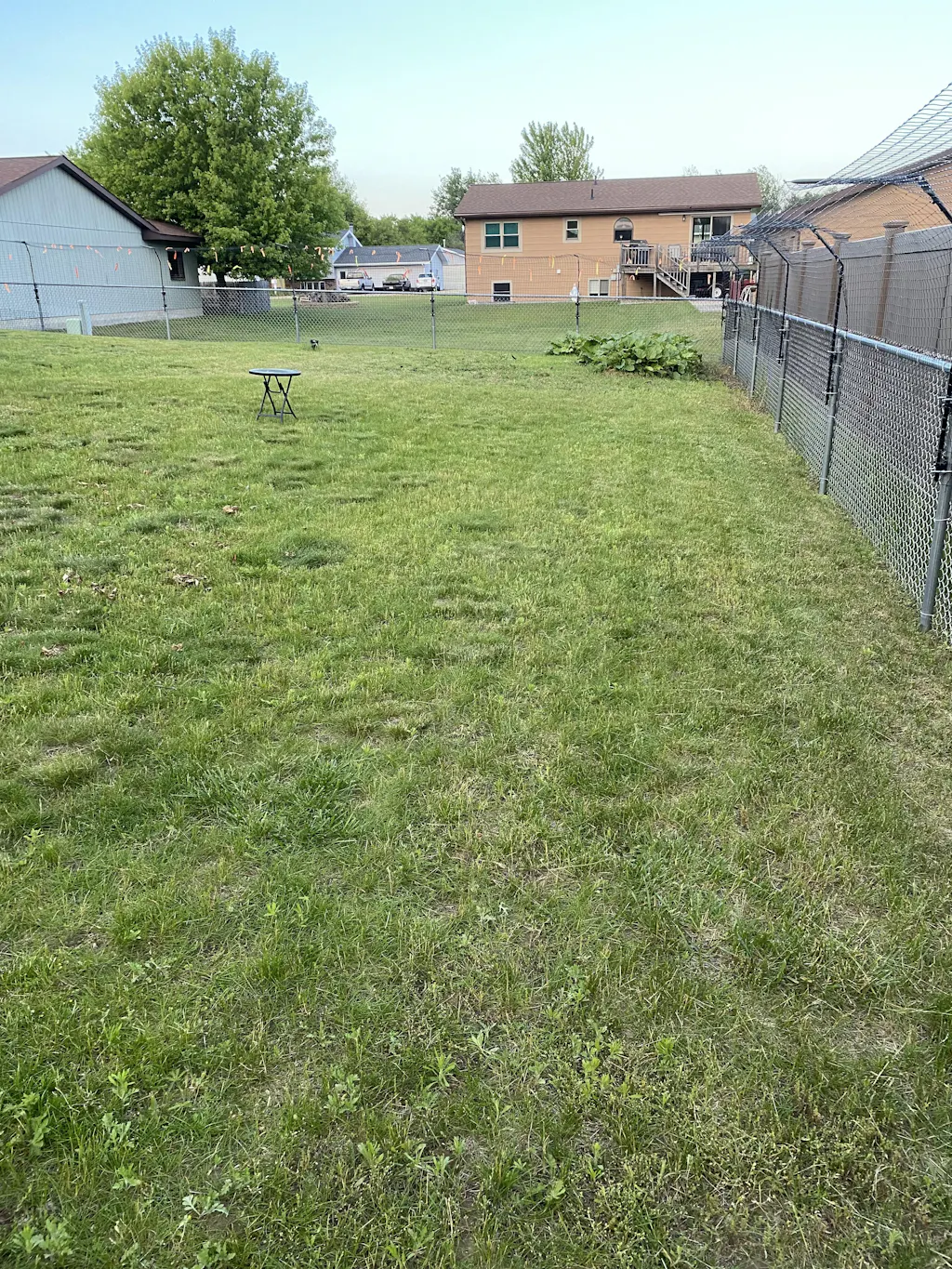

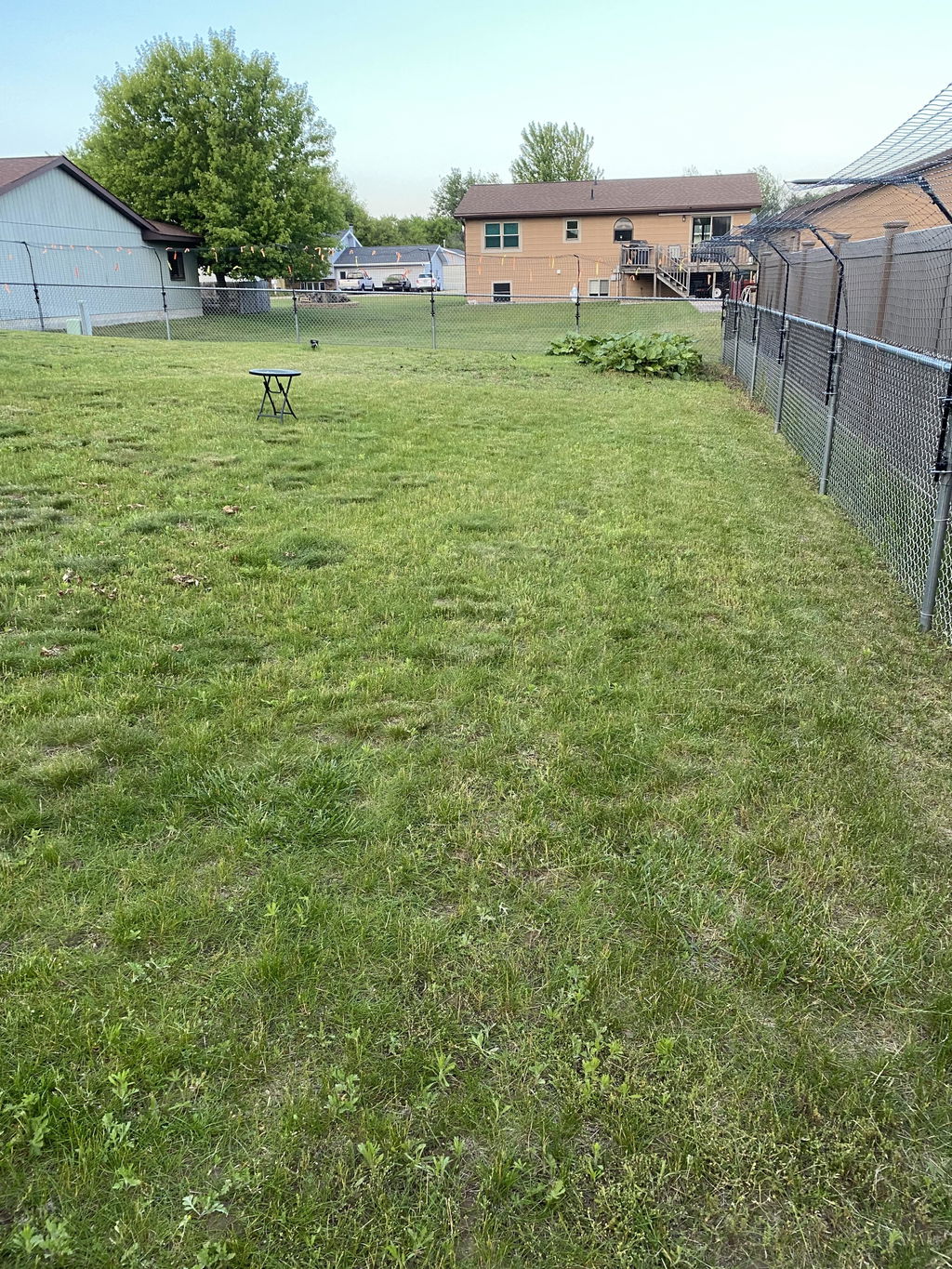

We had an existing chain link fence and we bought the fence extension. It was fairly easy to install. It takes time and it a two person job, but extremely happy with how it works. It keeps the cats in our yard and other animals out! My animals love being able to come in and out as they please and I know they are safe in the yard.
